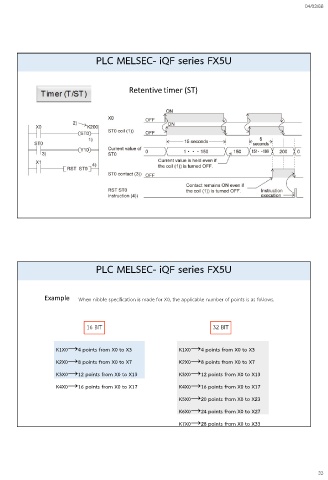

PLC MELSEC- iQF series FX5U
Retentive timer (ST)
PLC MELSEC- iQF series FX5U
Example When nibble specification is made for X0, the applicable number of points is as follows.
16 BIT 32 BIT
K1X0→4 points from X0 to X3 K1X0→4 points from X0 to X3
K2X0→8 points from X0 to X7 K2X0→8 points from X0 to X7
K3X0→12 points from X0 to X13 K3X0→12 points from X0 to X13
K4X0→16 points from X0 to X17 K4X0→16 points from X0 to X17
K5X0→20 points from X0 to X23
K6X0→24 points from X0 to X27
K7X0→28 points from X0 to X33
→
33
